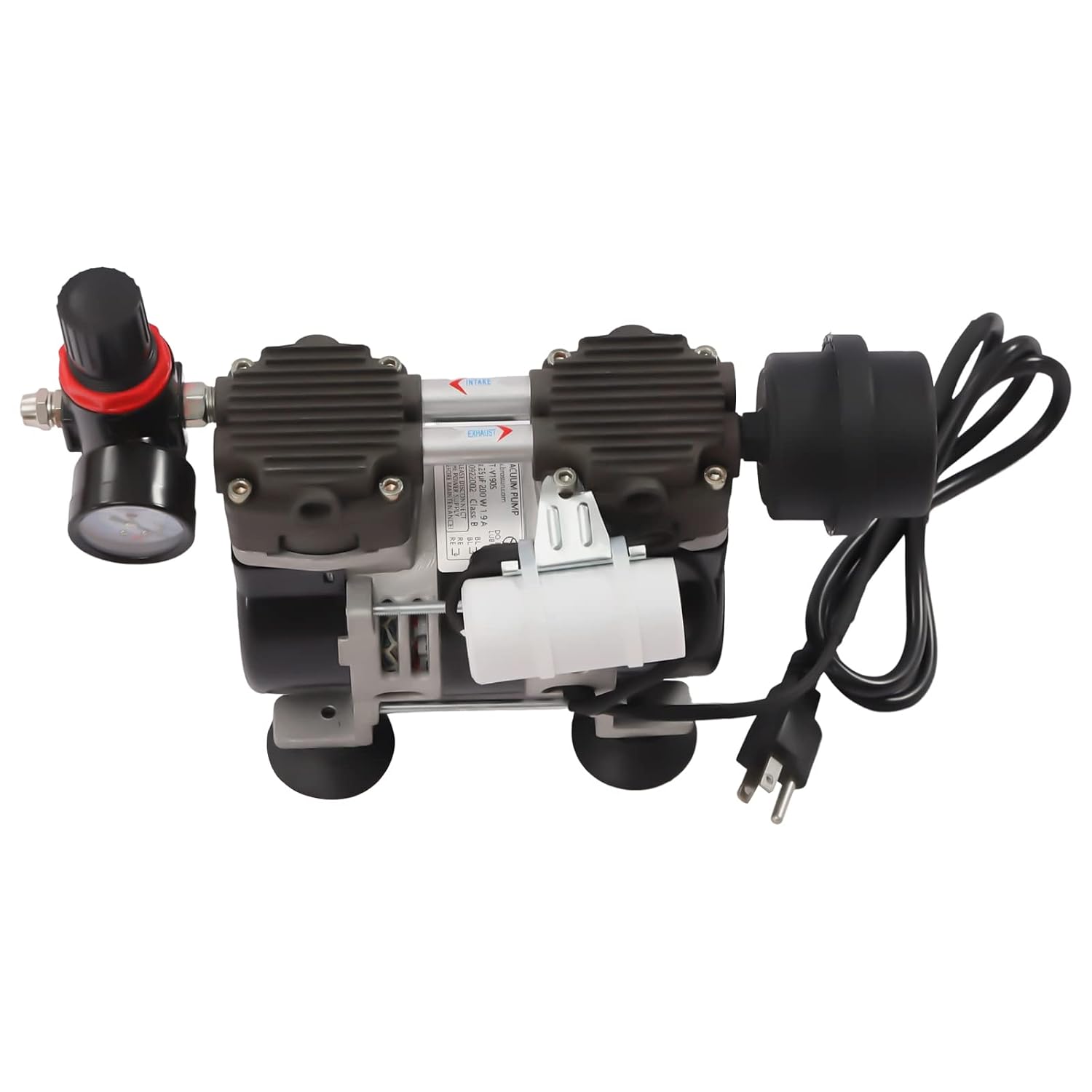

60L Lab Diaphragm Vacuum Pump Oil Free Oilless Mute Pump -90Kpa Air Pump with Air Filter, for Robotic Automation, Packaging Machines, The Medical Industry

DetailsAnti-corrosion Treatment: The surface of the pump body and gas contact parts are treated with special PTFE material, which has super chemical resistance.Suction Cup Base: The base of the machine comes with four suction cups, which fix the machine firmly on the table and will not slide.Pressure Gauge: The air filter is equipped with a precise pressure gauge on top, which makes it easy for you to observe the pressure value when pumping air at any time.ApplicationIt can be used in robotic automation, packaging machines, the medical industry, and aerospace labs. Precision instrumentation, electronic printing, shipbuilding and other fields.Specification Model: BST-V190SMaterial: Copper, Iron and AluminumColor: BlackPlug Type: USVoltage: 110V, 60HzPower: 200wVacuum Level: -90kpaPumping Speed: ≥60 L/min(2.12cfm)Noise: ≤48dbInstallation Screw: 4-M6Rotational Speed：≥1450r/minPackage Size: 26*15*18cm/10.2*5.9*7.1inchProduct Size: 17.2*9*14.2cm/6.8*3.5*5.6inchGross Weight: 4.3kg/9.48lbsNet Weight: 4kg/8.82lbsPackage Included1*Vacuum Pump1*Air Filter1*SilencerNotes1. Please note that this product cannot pump liquids or oil. If you are pumping liquid, you need to install an oil and water separator.2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.

• Powerful Pumping Power: The power of this vacuum pump of 200 watts and high rotation speed higher than 1450rpm/min provide it with super pumping power so that the vacuum degree can reach -90kpa.
• Safe and Reliable: Our special motor has passed CE certification and is equipped with overheating cut-off protector, which will automatically cut off the power after the temperature of the pump body reaches 266℉/130℃ to protect the motor from being damaged in long-term operation.
• Pure Copper Motor: It adopts a high-quality copper wire motor with low power, low-temperature rise and high energy efficiency ratio to provide long-term, stable and efficient operation for the vacuum pump.
• Heat Dissipation: Both sides of the machine are designed with mesh cooling fans and a thickened cooling cylinder cover to dissipate the heat generated by the motor operation in time to further maintain the stable performance of the machine.
• Application: It can be used in robotic automation, packaging machines, the medical industry, and aerospace labs. Precision instrumentation, electronic printing, shipbuilding and other fields.
